Abstract

Thermal bridges, also known as cold bridges or heat bridges, represent critical vulnerabilities within the thermal envelope of a building where heat transfer occurs at an accelerated rate. This phenomenon is typically attributed to interruptions in the continuous insulation layer, often caused by materials with significantly higher thermal conductivity or by specific geometric configurations. The pervasive presence of thermal bridges can lead to a multitude of detrimental outcomes, including substantial increases in energy consumption for heating and cooling, compromised indoor thermal comfort, and a heightened risk of moisture-related issues such as surface condensation and subsequent mold growth. Despite their profound influence on overall building performance and occupant well-being, the identification and effective mitigation of thermal bridges have historically been understated or entirely overlooked in conventional construction methodologies and regulatory frameworks. This comprehensive report undertakes an exhaustive examination of thermal bridges, delving into the fundamental physics governing their heat transfer mechanisms, elucidating advanced methodologies for their precise identification and accurate quantification, exploring cutting-edge engineering solutions and innovative material choices for creating effective thermal breaks, and analyzing the far-reaching, long-term implications of their systematic elimination. These implications span critical areas such as the optimized sizing of Heating, Ventilation, and Air Conditioning (HVAC) systems, the profound reduction in energy consumption, and the tangible improvements in occupant health and comfort across the diverse spectrum of global climate zones. The aim is to provide an invaluable resource for building professionals seeking to achieve genuinely high-performance and sustainable architectural designs.

1. Introduction

In the contemporary discourse surrounding sustainable architecture and high-performance building design, the meticulous management of a building’s thermal envelope has ascended to a position of paramount importance. The global imperative to mitigate climate change, coupled with escalating energy costs and growing awareness of occupant health, has catalysed an intensified focus on reducing energy demand in the built environment. Within this context, thermal bridges, often subtle yet highly impactful anomalies, have emerged as a critical subject of study and intervention. While significant strides have been made in enhancing the thermal performance of opaque building elements (walls, roofs, floors) through increased insulation thickness and improved window technologies, the localized disruption of this thermal continuity—the thermal bridge—can disproportionately undermine these advancements.

Thermal bridges are essentially localized zones within the building envelope where the thermal resistance is significantly lower than that of the surrounding construction. This disparity facilitates pathways of least resistance for heat flow, bypassing the intended insulation. Historically, their impact was often underestimated or simply accounted for by general safety margins in energy calculations. However, as the overall U-values (thermal transmittance) of building components have steadily improved in response to more stringent energy codes, the relative contribution of thermal bridges to total heat loss or gain has dramatically increased. What might once have been a minor component now represents a substantial percentage, sometimes exceeding 30% of the total fabric heat loss in highly insulated buildings (Smusz & Korzeniowski, 2018).

The implications extend beyond mere energy waste. Cold spots created by thermal bridges can lead to localized discomfort, reducing the usable area within a room, and critically, can lower surface temperatures below the dew point, triggering condensation. This moisture, if persistent, provides an ideal substrate for mold growth, which poses serious health risks, particularly for individuals with respiratory conditions (Chandrasiri et al., 2017).

This report aims to provide a comprehensive and deeply analytical exploration of thermal bridges, moving beyond superficial definitions to delve into their underlying physical principles, advanced diagnostic tools, sophisticated engineering countermeasures, and profound long-term consequences. By synthesizing current research and best practices, this document seeks to empower architects, engineers, contractors, and policymakers with the knowledge necessary to effectively address this often-unseen challenge in the pursuit of truly energy-efficient, resilient, and healthy buildings.

2. Physics of Heat Transfer Through Thermal Bridges

To fully grasp the significance and mechanisms of thermal bridges, it is essential to first understand the fundamental principles of heat transfer within building envelopes. Heat exchange between a building’s interior and its exterior environment primarily occurs through three modes: conduction, convection, and radiation. Thermal bridges typically exacerbate conductive heat transfer, but often interact with convective and radiative processes to amplify their overall effect.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

2.1 Fundamentals of Heat Transfer

2.1.1 Conduction

Conduction is the transfer of thermal energy through direct contact between particles, without macroscopic movement of the material itself. In solids, heat is primarily conducted through lattice vibrations and the movement of free electrons. Materials vary significantly in their ability to conduct heat, a property quantified by their thermal conductivity (λ or k), measured in Watts per metre Kelvin (W/(m·K)). Materials with high thermal conductivity (e.g., metals like steel or concrete) allow heat to pass through easily, while those with low thermal conductivity (e.g., insulation materials like mineral wool or rigid foam) resist heat flow. Fourier’s Law of Heat Conduction describes this process:

$Q = -λ * A * (dT/dx)$

Where:
* $Q$ is the rate of heat transfer (Watts)
* $λ$ is the thermal conductivity of the material (W/(m·K))
* $A$ is the cross-sectional area perpendicular to heat flow ($m^2$)
* $dT/dx$ is the temperature gradient across the material (K/m)

Thermal bridges fundamentally represent localized areas where $λ$ is significantly higher, or the effective $dx$ (thickness of insulation) is reduced, thereby increasing $Q$ for a given temperature difference.

2.1.2 Convection

Convection involves heat transfer through the movement of fluids (liquids or gases). In buildings, this primarily concerns air movement. Natural convection occurs when density differences due to temperature variations cause warmer, less dense air to rise and cooler, denser air to fall, creating circulation. Forced convection involves external means, such as fans or wind, to move the air. Convective heat transfer is described by Newton’s Law of Cooling:

$Q = h * A * (T_s – T_f)$

Where:
* $Q$ is the rate of convective heat transfer (Watts)
* $h$ is the convective heat transfer coefficient (W/($m^2$·K))
* $A$ is the surface area ($m^2$)
* $T_s$ is the surface temperature (K)
* $T_f$ is the fluid temperature (K)

While thermal bridges are primarily conductive, cold surfaces created by them can enhance natural convection patterns indoors, leading to localized drafts and increased heat loss from occupants. Moreover, air leakage (a form of forced convection) through gaps often associated with thermal bridge locations can significantly compound heat loss.

2.1.3 Radiation

Radiation is the transfer of heat through electromagnetic waves, requiring no medium. All objects with a temperature above absolute zero emit thermal radiation. The rate of radiative heat transfer is governed by the Stefan-Boltzmann Law:

$Q = ε * σ * A * (T_s^4 – T_{surr}^4)$

Where:
* $Q$ is the rate of radiative heat transfer (Watts)
* $ε$ is the emissivity of the surface (dimensionless, between 0 and 1)
* $σ$ is the Stefan-Boltzmann constant ($5.67 × 10^{-8}$ W/($m^2$·$K^4$))
* $A$ is the surface area ($m^2$)
* $T_s$ is the surface temperature (K)
* $T_{surr}$ is the surrounding temperature (K)

Cold surfaces resulting from thermal bridges radiate less heat to the room, but they also absorb more heat from warmer interior surfaces and occupants, creating a sensation of cold despite adequate air temperature, a phenomenon known as ‘radiant asymmetry’.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

2.2 Definition and Typology of Thermal Bridges

A thermal bridge is formally defined as an area within the building envelope where the thermal resistance is significantly altered by a localized change in the thermal conductance of the materials, a reduction in the thickness of the insulation, or a change in the geometry of the building component. This localized reduction in thermal resistance creates a ‘bridge’ or pathway through which heat can more easily bypass the insulated envelope.

Thermal bridges can be broadly categorized into two main types:

2.2.1 Material Thermal Bridges

These occur when a material with a higher thermal conductivity penetrates or interrupts an insulation layer. Common examples include:
* Concrete balcony slabs: Often extending directly from an interior floor slab to the exterior, creating a massive thermal bypass.
* Steel structural elements: Beams, columns, or connections that penetrate the insulation layer.
* Window and door frames: Particularly older or poorly designed metal frames, which have much higher conductivity than the surrounding wall.
* Fasteners and ties: Metal ties in cavity walls or mechanical fasteners for external insulation systems.
* Service penetrations: Pipes, conduits, or ventilation ducts passing through the envelope without adequate sealing or insulation.

2.2.2 Geometric Thermal Bridges

These occur due to changes in the geometry of the building envelope, even if the material composition remains uniform. At corners, for instance, the heat transfer area on the exterior is larger than on the interior, leading to a concentration of heat flux. Examples include:
* Building corners (internal and external): Heat flow tends to concentrate at external corners and diverge at internal corners, altering temperature distributions.
* Wall-floor, wall-roof, and wall-ceiling junctions: These interfaces inherently involve changes in component arrangement and can create complex heat flow paths.
* Recesses and projections: Such as window reveals, bay windows, or parapets, where the three-dimensional heat flow differs significantly from one-dimensional flow through a flat wall.

It is crucial to note that most real-world thermal bridges are a combination of both material and geometric effects. For example, a window opening involves both the geometric alteration of the wall and the introduction of a different material (the window frame) with distinct thermal properties.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

2.3 Quantifying Thermal Bridges: Psi (Ψ) and Chi (χ) Values

To accurately assess the impact of thermal bridges on a building’s energy performance, standardized methods for their quantification are essential. Traditional U-values (thermal transmittance) are suitable for characterizing the one-dimensional heat flow through planar building components. However, they are insufficient for the two- or three-dimensional heat flow patterns associated with thermal bridges.

2.3.1 Linear Thermal Transmittance (Ψ-value)

The linear thermal transmittance, or Ψ-value (Psi-value), is used to quantify linear thermal bridges. It represents the additional heat flow (beyond the one-dimensional flow through the adjacent building elements) occurring per unit length of the thermal bridge, per unit temperature difference. It is measured in W/(m·K).

The calculation of the total heat loss through a building envelope ($Q_{total}$) can be expressed as:

$Q_{total} = Σ(U_i * A_i) * ΔT + Σ(Ψ_k * L_k) * ΔT + Σ(χ_j) * ΔT$

Where:
* $U_i$ is the U-value of component $i$ (W/($m^2$·K))
* $A_i$ is the area of component $i$ ($m^2$)
* $Ψ_k$ is the Ψ-value of linear thermal bridge $k$ (W/(m·K))
* $L_k$ is the length of linear thermal bridge $k$ (m)
* $χ_j$ is the χ-value of point thermal bridge $j$ (W/K)
* $ΔT$ is the temperature difference between interior and exterior (K)

Ψ-values are critical because they allow for the integration of thermal bridge effects into whole-building energy models without needing to model every tiny detail in 3D. They are derived from two-dimensional (or occasionally three-dimensional) heat transfer simulations of specific junctions, subtracting the one-dimensional heat flows through the adjacent elements.

2.3.2 Point Thermal Transmittance (χ-value)

For point thermal bridges, such as the penetration of a structural column or a single fastener through an insulation layer, the point thermal transmittance, or χ-value (Chi-value), is used. It represents the additional heat flow per unit temperature difference for a specific point, measured in W/K. While less common than Ψ-values, χ-values are increasingly relevant for highly insulated facades where even small penetrations can become significant.

The calculation of Ψ-values and χ-values requires specialized simulation software based on finite element analysis (FEA) or finite difference methods, adhering to standards like EN ISO 10211, ‘Thermal bridges in building construction — Heat flows and surface temperatures — Detailed calculations’. These standards prescribe specific boundary conditions and assumptions for accurate and comparable results.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

2.4 Impact on Overall Building Energy Performance

The aggregate effect of thermal bridges, even with seemingly small Ψ-values, can represent a substantial portion of a building’s total fabric heat loss or gain. In a highly insulated building designed to meet stringent energy efficiency targets (e.g., Passivhaus standard), thermal bridges can account for 10-30% of the total envelope heat loss. If left unaddressed, they can undermine the performance of otherwise well-insulated walls and roofs.

Consider a typical wall section with an excellent U-value of 0.15 W/($m^2$·K). If this wall has unmitigated thermal bridges at its junctions with the floor, roof, and windows, the effective U-value of the entire wall assembly, including these linear effects, could increase by 20-50%. This directly translates to increased heating demand in winter and increased cooling demand in summer, contributing to higher energy bills and carbon emissions. The importance of accurately calculating and mitigating these effects cannot be overstated for achieving genuine energy performance targets and meeting regulatory compliance, such as the Nearly Zero-Energy Building (NZEB) mandates in many regions.

3. Advanced Methods for Identification and Quantification

Accurate detection and precise quantification of thermal bridges are indispensable prerequisites for their effective mitigation. Historically, this was a challenging task, often relying on theoretical calculations or rough approximations. However, advancements in diagnostic technologies and computational modelling have provided building professionals with sophisticated tools to identify, characterize, and even predict the behaviour of thermal bridges.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

3.1 Infrared Thermography (IRT)

Infrared Thermography (IRT) is a non-destructive, non-contact technique that visualizes temperature distributions on surfaces by detecting the infrared radiation emitted by objects. It is arguably the most widely used and intuitive method for identifying thermal bridges in existing buildings.

3.1.1 Principles of IRT

All objects with a temperature above absolute zero emit electromagnetic radiation. The peak wavelength of this emitted radiation is inversely proportional to the object’s temperature (Wien’s Displacement Law), and the total energy emitted is proportional to the fourth power of its absolute temperature (Stefan-Boltzmann Law). IR cameras detect this infrared radiation, typically in the long-wave infrared range (7-14 µm), and convert it into a visual thermal image (thermogram) where different colours represent different surface temperatures. Thermal bridges appear as cooler areas on interior surfaces during heating seasons (indicating heat loss) or warmer areas during cooling seasons (indicating heat gain).

3.1.2 Methodology for IR Surveys

To obtain reliable thermograms, specific environmental conditions and operational procedures are critical:
* Temperature Difference (ΔT): A minimum temperature difference of 10-15°C (indoors vs. outdoors) is typically required to create sufficient heat flow for detectable surface temperature variations. Greater ΔT yields clearer results.
* Minimizing Solar Radiation: Surveys should ideally be conducted at night, pre-dawn, or on overcast days to avoid solar loading effects, which can mask genuine thermal anomalies.
* Stable Conditions: Wind speed should be low (ideally < 5 m/s) to minimize convective cooling effects on the exterior surface. Interior conditions should be stable for at least 24 hours prior, with HVAC systems operating normally.
* Emissivity: Different materials emit infrared radiation with varying efficiency (emissivity, ε). Highly reflective surfaces (e.g., polished metal) have low emissivity and can reflect ambient radiation, leading to misleading readings. Adjustments or surface preparation (e.g., applying matte tape) may be necessary.
* Angle of View: Cameras should be held perpendicular to the surface to minimize reflections and perspective distortion.
* Professional Expertise: Interpreting thermograms requires significant experience, as apparent thermal bridges can sometimes be artefacts of surface materials, internal heat sources, or reflections.

3.1.3 Applications and Limitations

IRT is highly effective for:
* Qualitative identification: Pinpointing locations of significant heat loss/gain, air leakage paths, missing insulation, and moisture ingress.
* Pre- and post-retrofit assessment: Benchmarking performance and verifying the effectiveness of mitigation measures.
* Quality control during construction: Detecting installation defects.

However, IRT also has limitations:
* Surface phenomenon: It only measures surface temperatures, not internal temperatures or specific heat flow rates (without further calculations).
* Environmental dependency: Highly sensitive to external factors.
* Emissivity variations: Can lead to misinterpretation.
* Not truly quantitative for Ψ-values: While sophisticated software can perform some quantitative analysis, deriving precise Ψ-values from IRT alone is challenging and requires additional data and computational steps.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

3.2 Computational Modelling: FEA and CFD

Computational methods offer a powerful means to predict and quantify thermal bridge performance during the design phase or to analyse existing complex details with high precision.

3.2.1 Finite Element Analysis (FEA)

FEA is a numerical method used to solve complex engineering problems by dividing a continuous domain (e.g., a building component cross-section) into a finite number of smaller, simpler sub-domains called ‘elements’. For thermal analysis, FEA software discretizes the geometry, assigns material properties (thermal conductivity, specific heat capacity, density) and boundary conditions (surface temperatures, heat transfer coefficients), and then solves the heat conduction equation for each element, iteratively converging to a solution for temperature distribution and heat flux.

Methodology and Applications:
* Geometry Definition: Precise 2D or 3D CAD models of the thermal bridge junction are created.
* Meshing: The geometry is divided into a mesh of discrete elements (triangles or quadrilaterals in 2D, tetrahedrons or hexahedrons in 3D). Finer meshes are used in areas of high temperature gradient (e.g., at material interfaces or corners).
* Material Properties: Accurate thermal conductivities for all materials (insulation, concrete, steel, timber, air gaps) are input.
* Boundary Conditions: Internal and external air temperatures, and surface heat transfer coefficients (convective and radiative) are defined according to standards (e.g., EN ISO 6946, EN ISO 10211).
* Solver: The software (e.g., THERM, Ansys, COMSOL, PSI-Therm) solves the governing differential equations for steady-state or transient heat transfer.
* Output: Detailed temperature contour plots, heat flux vectors, and numerical values for surface temperatures and heat flow rates. Critically, FEA allows for the direct calculation of Ψ-values by subtracting the one-dimensional heat flows of the adjacent components.

Advantages:
* High Precision: Provides highly accurate results for temperature distribution and heat flow.
* Design Optimization: Enables designers to test different material combinations and geometries virtually, optimizing thermal break designs before construction.
* Standard Compliance: Essential for calculating Ψ-values in accordance with international standards.
* Complex Geometries: Can model intricate junctions that are difficult to analyse empirically.

Limitations:
* Expertise Required: Requires specialized knowledge and experience in thermal modelling.
* Computational Cost: 3D modelling of complex thermal bridges can be computationally intensive.
* Input Data Sensitivity: Accuracy relies heavily on precise material property data and boundary conditions.

3.2.2 Computational Fluid Dynamics (CFD)

While FEA focuses primarily on heat conduction through solids, CFD is a branch of fluid mechanics that uses numerical methods to solve problems involving fluid flow. In the context of thermal bridges, CFD can be used to model coupled heat and airflow phenomena. For instance, it can simulate convective heat transfer within uninsulated cavities, the impact of air leakage through gaps, or the complex interaction of indoor air currents with cold surfaces, providing insights into localized humidity levels and potential for condensation not fully captured by FEA alone.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

3.3 Building Information Modeling (BIM) and Integrated Performance Simulation

Building Information Modeling (BIM) has revolutionized the architectural, engineering, and construction (AEC) industry by creating intelligent, 3D models of buildings that contain vast amounts of data. When integrated with energy performance simulation tools, BIM becomes a powerful platform for proactive thermal bridge management.

Integration and Application:
* Early Design Integration: BIM allows thermal bridge risks to be identified and addressed at the conceptual and schematic design stages, where changes are least costly.
* Data Richness: The BIM model stores material properties, geometry, and component relationships, which can be directly fed into energy analysis software (e.g., IESVE, EnergyPlus, IDA ICE).
* Automated Thermal Bridge Detection: Advanced BIM tools can identify potential thermal bridges based on component intersections and material property conflicts, flagging them for detailed FEA analysis.
* Parametric Design: Designers can explore various thermal break solutions parametrically within the BIM environment, quickly assessing the impact of different insulation types, thicknesses, or structural configurations on overall energy performance and Ψ-values.
* Interoperability: The Industry Foundation Classes (IFC) open standard facilitates data exchange between different BIM authoring tools and analysis software, though challenges in preserving detailed thermal information (e.g., complex junction details for Ψ-value calculation) still exist.
* Lifecycle Management: BIM can support the thermal performance of a building throughout its entire lifecycle, from design and construction to operation and eventual renovation, enabling better maintenance strategies and future retrofits.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

3.4 In-situ Performance Testing: Co-heating and Blower Door Tests

While IRT and computational modelling provide valuable insights, in-situ performance testing offers direct empirical evidence of a building’s as-built thermal performance, including the cumulative effect of all thermal bridges and air leakage.

3.4.1 Co-heating Tests

A co-heating test involves heating a vacant building to a constant internal temperature (typically 20-25°C) for several days or weeks, regardless of external conditions. The energy input required to maintain this temperature is measured. After accounting for internal gains and other variables, the total heat loss coefficient of the building can be determined. This coefficient inherently includes all heat losses through the fabric, including those due to thermal bridges, as well as ventilation losses. While time-consuming and expensive, co-heating tests provide the most accurate measure of actual whole-building heat loss.

3.4.2 Blower Door Tests

Blower door tests measure the airtightness of a building envelope by depressurizing or pressurizing the building and measuring the airflow required to maintain a specific pressure difference (e.g., 50 Pa). Air leakage pathways often occur at junctions and penetrations—precisely where thermal bridges are prevalent. Air leakage contributes significantly to convective heat loss and can transport moisture into wall cavities, exacerbating condensation risks at cold spots created by thermal bridges. Therefore, a high degree of airtightness is a crucial complement to thermal bridge mitigation, as even the best-insulated wall will underperform if air bypasses the insulation.

4. Engineering Solutions and Material Choices for Effective Thermal Breaks

Mitigating thermal bridges requires a strategic, holistic approach that integrates design principles, construction techniques, and advanced material science. The overarching goal is to maintain the continuity of the insulation layer and interrupt direct heat flow pathways.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

4.1 Principles of Thermal Bridge Mitigation

Effective thermal bridge mitigation is guided by several key principles:
* Continuity of Insulation: The most fundamental principle is to ensure that the insulation layer forms an uninterrupted envelope around the conditioned space. Any penetration or break in this layer creates a potential thermal bridge.
* Simplification of Junctions: Complex geometric junctions inherently create thermal bridges. Designers should strive for simpler, more robust detailing that minimizes the number of material changes and transitions.
* Minimizing High Conductivity Paths: Where structural elements or services must penetrate the insulation, choose materials with lower thermal conductivity or incorporate dedicated thermal breaks.
* Designing for Buildability: Even the best design will fail if it is difficult or impractical to construct correctly on site. Detailing should consider the practicalities of installation and quality control.
* Hierarchy of Mitigation: The ideal approach is to eliminate thermal bridges wherever possible. If elimination is not feasible, reduce their impact through design and material choices. Finally, compensate for unavoidable thermal bridges by enhancing insulation elsewhere, although this is the least preferred option.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

4.2 Specific Design Strategies

4.2.1 Continuous External Insulation (ETICS/EIFS)

External Thermal Insulation Composite Systems (ETICS) or Exterior Insulation Finishing Systems (EIFS) involve applying a continuous layer of insulation to the exterior face of the structural wall. This method is highly effective because it wraps the entire building in a thermal blanket, externalizing the structural elements and minimizing interruptions to the insulation layer at junctions and corners. The main challenges lie in detailing around window and door openings, where careful consideration is needed to extend the insulation into the reveals and integrate with frame systems to prevent cold spots.

4.2.2 Advanced Framing Techniques

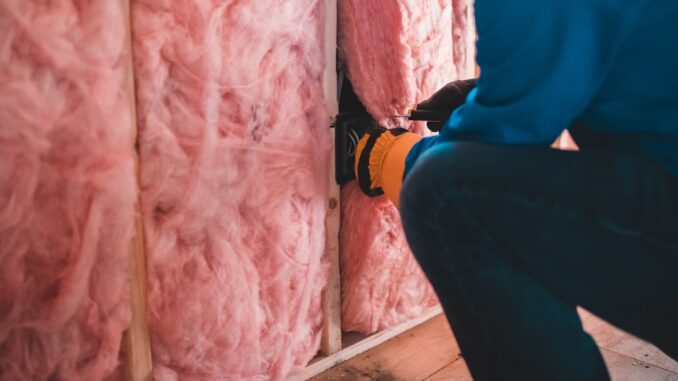

In light-frame construction (timber or steel stud walls), the studs themselves can act as thermal bridges, as their thermal conductivity is significantly higher than the cavity insulation. Advanced framing (also known as ‘optimum value engineering’) techniques aim to minimize thermal bridging through the framing members:
* Staggered Stud Walls: Two rows of studs are offset on a wider bottom plate, allowing insulation to fill the entire cavity between inner and outer sheathing, eliminating direct conductive paths.
* Double-Stud Walls: Similar to staggered studs, but with two separate, parallel stud walls, creating a very deep cavity for insulation.
* Ladder Blocking/Insulated Corners: Minimizing the amount of lumber used at corners and non-load-bearing partitions, replacing it with insulation.
* Insulated Headers: Using engineered wood products (e.g., I-joists) or composite headers with insulation inserts over window and door openings, rather than solid lumber, to reduce conductive pathways.

4.2.3 Structural Thermal Breaks

One of the most challenging thermal bridges to mitigate is where structural elements like concrete balcony slabs, canopies, or parapets extend from the conditioned interior to the unconditioned exterior. These require specialized structural thermal breaks (STBs).

• Proprietary STBs: These are pre-engineered components designed to transfer structural loads (shear, moment, tension) while significantly reducing thermal conductivity. They typically consist of a high-strength insulating core (e.g., expanded polystyrene, mineral wool, or foamed glass) reinforced with stainless steel rebar or composite elements. Stainless steel has a much lower thermal conductivity than carbon steel, and composite materials can be even better insulators.
• Applications: Commonly used for cantilevered balconies, slab-to-wall connections, parapet connections, and column-to-slab interfaces. Properly specified and installed STBs can reduce Ψ-values at these critical junctions by 80-90% compared to uninsulated connections (Zhang et al., 2022).

4.2.4 Window and Door Detailing

Windows and doors are inherently weak points in the thermal envelope. Beyond the U-value of the glazing and frame, the interface between the window frame and the wall insulation is a significant linear thermal bridge.
* Insulated Frames: Using frames with multi-chamber profiles, thermal break elements (e.g., polyamide strips in aluminum frames), or materials with inherently lower conductivity (e.g., uPVC, timber composites) improves the frame’s U-value.
* Window Placement: Positioning the window frame within the insulation layer of the wall, rather than flush with the interior or exterior, can significantly reduce the Ψ-value of the window-to-wall junction. This often involves extending the insulation into the window reveal.
* Sealing and Gasketing: Meticulous airtightness sealing around frames, using expanding foams, tapes, and membranes, prevents convective heat loss and moisture ingress.

4.2.5 Foundation and Slab Edge Details

Thermal bridges at the ground interface can lead to significant heat loss, particularly for slab-on-grade constructions.
* Perimeter Insulation: Extending rigid insulation vertically down the exterior perimeter of a slab-on-grade foundation or horizontally under the slab edge is crucial. For raft foundations, a continuous layer of high-density rigid insulation (e.g., extruded polystyrene – XPS or foamed glass) under the entire slab provides a robust thermal break from the ground.
* Insulated Frost Walls/Stem Walls: Incorporating insulation within or on the exterior of foundation walls that extend below the frost line.
* Thermal Breaks at Sill Plates: Using compressible insulating gaskets or membranes between the foundation wall and the sole plate of a timber frame wall to prevent heat transfer through the concrete-wood interface.

4.2.6 Roof-Wall Junctions and Parapets

These junctions are often complex and prone to thermal bridging. Continuous insulation is paramount:
* Overlapping Insulation: Ensuring the roof insulation continuously overlaps the wall insulation, avoiding gaps. For flat roofs, this means extending the insulation over the top of the wall and into the parapet structure.
* Insulated Parapets: Designing parapets as insulated extensions of the wall and roof structure, rather than as uninsulated concrete or masonry elements, to prevent cold bridges at the roof edge.

4.2.7 Penetrations and Service Runs

Any penetration through the building envelope (pipes, ducts, vents, electrical conduits) creates a potential thermal bridge. These must be meticulously detailed:
* Sealing and Insulating: Gaps around penetrations should be filled with expanding foam, sealants, or specialized collars to maintain airtightness and thermal continuity.
* Insulated Sleeves: Using insulating sleeves around pipes or ducts where they pass through the envelope.
* Backer Rod and Sealant: For larger gaps, the use of backer rods combined with appropriate sealants ensures a durable and airtight seal.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

4.3 High-Performance Materials for Thermal Breaks

The advancement of material science has yielded specialized materials that offer exceptional thermal resistance, enabling thinner yet more effective thermal breaks in challenging locations.

4.3.1 Aerogels

Aerogels are synthetic porous ultralight materials derived from a gel, in which the liquid component of the gel has been replaced with gas. They are characterized by extremely low density and exceptionally low thermal conductivity (as low as 0.013 W/(m·K)), making them among the best insulating materials available. Their high porosity (up to 99.8%) and nanostructure significantly impede all three modes of heat transfer.
* Applications: Due to their high cost, aerogels are typically used in applications where space is highly constrained, such as thin insulation layers in window frames, door panels, or retrofitting historically significant facades where wall thickness cannot be increased. They are available in various forms, including flexible blankets, rigid boards, and granules.
* Challenges: High cost, fragility in some forms, and dust generation during handling.

4.3.2 Vacuum Insulated Panels (VIPs)

VIPs consist of a rigid, porous core material (e.g., fumed silica, fibreglass, or open-cell foam) encased in a gas-tight, multi-layer metallic foil envelope, from which the air has been evacuated to a very low pressure. The vacuum significantly reduces heat transfer by conduction and convection within the core, resulting in extremely low effective thermal conductivities (typically 0.004-0.008 W/(m·K)), far superior to conventional insulation.
* Applications: VIPs are ideal for situations where maximum thermal resistance is required within minimal thickness, such as curtain wall spandrels, roof upstands, under-floor insulation in existing buildings, and door panels. They are particularly valuable for addressing complex point thermal bridges.
* Challenges: High cost, vulnerability to puncture (which destroys the vacuum and hence the performance), and difficulty in cutting or shaping on site without compromising the envelope.

4.3.3 Rigid Foams (EPS, XPS, PIR/PUR)

These are widely used and highly effective insulation materials that play a crucial role in forming continuous insulation layers and mitigating thermal bridges:
* Expanded Polystyrene (EPS): Closed-cell foam, relatively inexpensive, good compressive strength, moderate thermal conductivity (0.030-0.040 W/(m·K)). Often used in ETICS, cavity wall insulation, and under-slab insulation.
* Extruded Polystyrene (XPS): Denser and stronger closed-cell foam, higher moisture resistance than EPS, slightly better thermal conductivity (0.028-0.035 W/(m·K)). Preferred for ground contact applications (perimeter insulation, inverted roofs) due to its resistance to water absorption.
* Polyisocyanurate (PIR) and Polyurethane (PUR): Thermoset foams with very fine closed-cell structures, offering excellent thermal conductivity (0.020-0.028 W/(m·K)). Used in insulated panels, roof insulation, and sometimes in specialized thermal break components due to their high performance and rigidity.

4.3.4 Fibreglass and Mineral Wool

Fibreglass (glass wool) and mineral wool (rock wool/slag wool) are fibrous insulation materials known for their good thermal performance (0.032-0.045 W/(m·K)), fire resistance, and acoustic properties. They are often used as cavity fill, batt insulation, and in some external insulation systems. While generally not suited for structural thermal breaks, they are crucial for ensuring continuity of insulation in non-load-bearing areas and filling complex voids.

4.3.5 Structural Insulated Panels (SIPs) and Insulated Concrete Forms (ICFs)

These prefabricated systems inherently reduce thermal bridging by integrating insulation directly into the structural components:
* SIPs: Consist of an insulating foam core (typically EPS or XPS) sandwiched between two structural facings (e.g., OSB). They provide continuous insulation across walls, roofs, and floors, minimizing stud-related thermal bridges.
* ICFs: Consist of hollow insulation blocks (typically EPS) that are stacked and filled with concrete to form structural walls. The continuous insulation on both sides of the concrete greatly reduces thermal bridging through the concrete mass.

By strategically combining these design solutions and advanced materials, building professionals can achieve robust, high-performance thermal envelopes that significantly reduce the impact of thermal bridges, contributing to superior energy efficiency and indoor environmental quality.

5. Long-Term Impact on HVAC System Sizing, Energy Consumption, and Occupant Health

The systematic identification and elimination of thermal bridges yield profound and cascading long-term benefits that extend far beyond simple energy savings. These benefits encompass optimized HVAC system performance, substantial reductions in operational costs and environmental footprint, and significant improvements in occupant health and comfort.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

5.1 HVAC System Sizing and Performance

One of the most immediate and tangible long-term impacts of mitigating thermal bridges is on the design and performance of Heating, Ventilation, and Air Conditioning (HVAC) systems.

• Reduced Peak Loads: Thermal bridges contribute to higher peak heating loads in winter and peak cooling loads in summer. By eliminating these pathways, the overall heat loss and gain through the building fabric are dramatically reduced. This directly translates to lower peak loads that the HVAC system must manage.
• Smaller, More Efficient Equipment: With reduced peak loads, HVAC designers can specify smaller, appropriately sized heating and cooling equipment. Oversized equipment, a common issue in buildings with unaddressed thermal bridges, often cycles on and off inefficiently, leading to:
  • Reduced Efficiency: Equipment operates sub-optimally at part-load conditions, consuming more energy per unit of output.
  • Shorter Lifespan: Frequent cycling causes increased wear and tear, shortening the equipment’s operational life.
  • Higher Capital Costs: Larger equipment costs more to purchase and install.
  • Poor Dehumidification: In cooling modes, oversized systems may not run long enough to effectively remove humidity, leading to uncomfortable and potentially unhealthy indoor conditions in humid climates.
• Improved Part-Load Performance: Appropriately sized systems, particularly those with variable refrigerant flow (VRF) or variable air volume (VAV) technologies, can operate more efficiently at part loads, which represent the majority of operating hours for most buildings.
• Simplified Distribution Systems: Reduced loads may allow for smaller ductwork, piping, and fewer terminals, further decreasing material costs and potential distribution losses. This can also free up valuable floor-to-floor height or ceiling space.
• Reduced Operating Hours: With a more stable indoor environment and lower heat transfer rates, HVAC systems need to operate for fewer hours to maintain setpoint temperatures, directly saving energy.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

5.2 Energy Consumption and Operational Costs

The direct correlation between thermal bridge mitigation and reduced energy consumption is arguably the most recognized benefit.

• Quantifiable Energy Savings: By reducing heat loss in winter and heat gain in summer, the energy required for space conditioning significantly decreases. Studies have shown that addressing thermal bridges can reduce a building’s total energy demand by 5-15%, and even more in highly insulated buildings where the relative impact of thermal bridges is greater (Pérez-Carramiñana et al., 2024).
• Lower Operational Costs: These energy savings translate directly into reduced utility bills over the entire lifespan of the building, providing a strong economic incentive for owners and developers. The initial investment in thermal bridge mitigation often has an attractive payback period, particularly as energy prices continue to rise.
• Enhanced Building Value: Buildings with superior energy performance command higher market value, are more attractive to tenants (due to lower operating costs), and contribute to a stronger brand image for developers committed to sustainability.
• Reduced Carbon Emissions: Lower energy consumption directly equates to a reduction in greenhouse gas (GHG) emissions, contributing significantly to climate change mitigation efforts and helping nations meet their carbon reduction targets. This aligns with broader sustainability goals and corporate social responsibility initiatives.
• Compliance with Regulations: Increasingly stringent energy performance regulations (e.g., NZEB targets in Europe, various green building codes globally) necessitate meticulous attention to thermal bridges. Buildings that effectively mitigate thermal bridges are more likely to achieve compliance and benefit from associated incentives or subsidies.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

5.3 Occupant Health and Comfort

Beyond energy and economics, the human-centric benefits of eliminating thermal bridges are profound, directly impacting occupant health, comfort, and productivity.

5.3.1 Thermal Comfort

Thermal comfort is defined as ‘that condition of mind which expresses satisfaction with the thermal environment’ (ASHRAE Standard 55). Thermal bridges undermine this in several ways:
* Cold Spots and Radiant Asymmetry: Cold surfaces created by thermal bridges (e.g., near windows, corners, or floor edges) cause radiant heat loss from occupants, leading to a sensation of cold even if the air temperature is adequate. This radiant asymmetry is a major source of discomfort. Eliminating thermal bridges ensures more uniform surface temperatures, creating a more comfortable radiant environment.
* Localized Drafts: Cold surfaces can induce natural convection currents, creating localized drafts that further contribute to discomfort.
* Expanded Usable Space: By raising the temperature of formerly cold perimeter zones, thermal bridge mitigation increases the usable area of a room, making spaces near windows or external walls more comfortable and inviting.
* Reduced Temperature Stratification: More uniform surface temperatures contribute to less internal air temperature stratification, providing a more consistent and comfortable environment throughout the conditioned space.

5.3.2 Indoor Air Quality (IAQ) and Moisture Management

Perhaps the most critical health impact of thermal bridges relates to moisture control and indoor air quality.
* Surface Condensation: When warm, humid indoor air comes into contact with a cold surface (below its dew point temperature), condensation occurs. Thermal bridges are prime locations for such cold spots. Persistent surface condensation can lead to visible water accumulation.
* Interstitial Condensation: Moisture can also migrate through the building fabric (vapor diffusion or air leakage) and condense within the wall assembly if it reaches a cold surface below the dew point. This interstitial condensation can be hidden but equally damaging.
* Mold and Mildew Growth: Condensation provides the necessary moisture for mold and mildew to grow on interior surfaces and within wall cavities. Mold spores and volatile organic compounds (VOCs) released by mold are significant indoor air pollutants. Exposure to mold can lead to a range of health issues, including:
* Respiratory problems: Asthma exacerbation, allergic rhinitis, bronchitis.
* Allergic reactions: Skin rashes, eye irritation.
* Other symptoms: Headaches, fatigue, dizziness.
* Material Degradation: Prolonged moisture exposure due to condensation can lead to the degradation of building materials (e.g., rotting timber, corroding metal, damaged plasterboard), compromising structural integrity and requiring costly repairs.

By effectively mitigating thermal bridges, surface and interstitial condensation risks are drastically reduced, preventing mold growth and preserving a healthy indoor air quality. This not only protects occupant health but also extends the lifespan of the building fabric, reducing maintenance costs and avoiding costly remediation.

In essence, addressing thermal bridges is a fundamental step towards creating truly high-performance buildings that are not only energy-efficient and environmentally responsible but also inherently healthy, comfortable, and resilient for their occupants over the long term.

6. Thermal Bridges in Different Climate Zones

The impact and optimal mitigation strategies for thermal bridges are significantly influenced by the prevailing climate conditions. Different climate zones present unique challenges and prioritize different aspects of thermal envelope performance.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

6.1 Cold and Arctic Climates

In regions characterized by prolonged periods of very low temperatures, cold winters, and often strong winds, the primary concern with thermal bridges is the extensive heat loss from the interior to the exterior.
* Exacerbated Heat Loss: The large temperature difference between indoors and outdoors (ΔT) significantly amplifies the rate of heat transfer through any thermal bridge. Even small Ψ-values can lead to substantial heat energy leakage.
* Severe Condensation Risk: Interior surface temperatures at thermal bridges can drop well below the dew point, leading to severe surface condensation and even ice formation in extreme cases. This poses a major risk for mold growth, material degradation (e.g., frost damage to timber, spalling of masonry), and potential structural damage due to freeze-thaw cycles within the building fabric if interstitial condensation occurs.
* Elevated Heating Demands: Uncontrolled thermal bridges contribute heavily to increased heating loads, necessitating larger and more energy-intensive heating systems, and significantly higher operational costs.
* Priority Mitigation: Strategies in cold climates heavily emphasize achieving maximum insulation continuity, robust airtightness, and meticulously detailed thermal breaks at every junction. Continuous external insulation is highly advantageous, wrapping the structural frame to externalize thermal bridges. Structural thermal breaks for balconies and roof parapets are absolutely critical. Vapor control layers on the warm side of the insulation are essential to prevent moisture migration into cold cavities.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

6.2 Hot and Arid Climates

In hot, dry climates, where cooling is the dominant energy demand, thermal bridges primarily contribute to heat gain from the scorching exterior to the cooler interior.
* Heat Ingress: Direct solar radiation on external surfaces can significantly raise their temperature, creating a large ΔT that drives heat inward through thermal bridges. Concrete elements exposed to direct sun, such as slab edges or structural columns, can become significant heat sinks.
* Increased Cooling Loads: This unwanted heat gain increases the demand on air conditioning systems, leading to higher electricity consumption and larger cooling plant requirements.
* Condensation Risk (less prevalent but possible): While less common than in cold climates, condensation can still occur. If the interior is heavily air-conditioned to very low temperatures, and exterior elements forming a thermal bridge are very hot, then the interior cold surface of the thermal bridge could potentially fall below the dew point of the indoor air, though this is usually less severe than in cold climates unless coupled with high indoor humidity.
* Priority Mitigation: Mitigation strategies focus on reducing solar heat gain and ensuring a tight thermal envelope. This includes:
* High albedo (reflective) exterior finishes: To reduce surface temperatures.
* Effective shading: Over windows and opaque walls.
* Roof insulation: Critical for reducing solar heat gain from the most exposed surface.
* Thermal breaks: Essential at slab edges, parapets, and where structural elements penetrate the envelope to prevent conduction of solar-heated exterior components inwards. While the thermal bridge itself contributes to conductive heat gain, air leakage through poorly sealed thermal bridge areas can also bring in hot, dusty air, further increasing cooling loads.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

6.3 Hot and Humid Climates

These climates, characterized by high temperatures and persistent high relative humidity, present a complex interplay of heat gain and significant moisture challenges.
* Dual Heat and Latent Gain: Thermal bridges contribute to both sensible heat gain (raising air temperature) and latent heat gain (introducing moisture) if associated with air leakage from the humid exterior. This puts a substantial burden on cooling and dehumidification systems.
* Severe Condensation Risk (Interior): The primary condensation risk in hot and humid climates is often on the interior surfaces of thermal bridges, where the conditioned, cool air meets surfaces that are cooled further by exterior thermal bridges. This is particularly problematic if a vapor-impermeable material is incorrectly placed on the exterior of the insulation layer (preventing outward drying) or if humid air penetrates the wall assembly and condenses on an interior-cooled thermal bridge. Outward vapor drive during the cooling season is a significant consideration, meaning the warm, humid air tries to move from outside to inside, condensing on the first cool surface it meets inside the assembly.
* Mold and Mildew Proliferation: The combination of warm temperatures, high humidity, and cold surfaces created by thermal bridges provides ideal conditions for rapid and widespread mold and mildew growth, severely impacting IAQ and occupant health.
* Priority Mitigation: Effective strategies must manage both heat and moisture:
* Continuous Insulation: As with other climates, continuous insulation is crucial.
* Vapor Retarders/Barriers: The strategic placement of vapor control layers is critical. In cooling-dominated humid climates, a vapor retarder or barrier is generally placed on the exterior side of the insulation or within the assembly to prevent humid outdoor air from penetrating and condensing on cooler interior surfaces. This differs from cold climates where it’s on the warm (interior) side.
* Airtightness: Absolutely paramount to prevent the infiltration of humid outdoor air into conditioned spaces and wall cavities.
* Dehumidification: HVAC systems must be able to handle significant latent loads, and effective thermal bridge mitigation reduces these loads, making dehumidification more manageable.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

6.4 Temperate Climates

Temperate climates experience distinct seasons with both significant heating and cooling demands. This requires a balanced approach to thermal bridge mitigation.
* Bimodal Impact: Thermal bridges cause heat loss in winter and heat gain in summer. The mitigation solutions must be effective in both scenarios, providing year-round performance.
* Seasonal Condensation Risks: Depending on the season, condensation can occur either on internal surfaces (winter) or within the assembly due to outward vapor drive (summer, if cooled interior). This necessitates careful detailing of insulation and vapor control layers that perform well in fluctuating conditions.
* Adaptive Design: Strategies may include dynamic elements or materials that respond to seasonal changes, though the fundamental principles of continuous insulation and thermal breaks remain paramount.
* Priority Mitigation: A comprehensive approach is needed, combining strategies from both cold and hot climates. Emphasis on robust, airtight, and well-insulated envelopes with effective thermal breaks for all major junctions. Detailed hygrothermal analysis (simulating heat and moisture transport) may be particularly beneficial in temperate zones to ensure long-term performance and prevent hidden moisture issues.

Understanding these climate-specific challenges is crucial for designing and constructing buildings that are truly high-performing, resilient, and comfortable across diverse global environments. A ‘one-size-fits-all’ approach to thermal bridge mitigation is insufficient and can lead to unintended consequences in specific climatic contexts.

7. Regulatory Framework and Best Practices

The growing recognition of thermal bridges’ impact has led to their increasing integration into national and international building regulations, energy performance standards, and voluntary green building certification schemes. This section explores the evolving regulatory landscape and outlines best practices for effective thermal bridge management.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

7.1 Building Codes and Standards

Historically, many building codes either ignored thermal bridges or used simplistic default values that significantly underestimated their true impact. This is changing rapidly:

• European Union’s Energy Performance of Buildings Directive (EPBD): The EPBD mandates that all new buildings be Nearly Zero-Energy Buildings (NZEBs) and existing buildings undergoing major renovation achieve higher energy performance. Accurate calculation of thermal bridges, often using Ψ-values, is now a mandatory component of energy performance calculations in many EU member states to comply with NZEB standards.
• ISO Standards (e.g., EN ISO 10211, EN ISO 13789): These international standards provide the technical framework for calculating thermal bridges. EN ISO 10211 specifies detailed calculation methods for heat flows and surface temperatures in thermal bridges, forming the basis for Ψ-value derivation. EN ISO 13789 describes methods for calculating the overall heat transfer coefficient of a building, which explicitly includes contributions from linear and point thermal bridges.
• National Building Codes: Many countries have adopted or adapted these international standards into their national building codes. For instance, in the UK, Approved Document L (Conservation of Fuel and Power) requires thermal bridge calculations for new buildings, often referencing detailed junction tables or requiring bespoke Ψ-value calculations for non-standard details. Similar requirements exist in Germany (EnEV, now GEG), France (RT2012, now RE2020), and increasingly in North America (ASHRAE 90.1, IECC, Passive House US).
• Default vs. Calculated Ψ-values: Codes often provide two options: using conservative ‘default’ Ψ-values (which penalize poor detailing and encourage better design) or undertaking detailed calculations to derive ‘accredited’ or ‘project-specific’ Ψ-values. The latter usually results in significantly better energy ratings, incentivizing careful design and mitigation.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

7.2 Certification Schemes and Green Building Standards

Voluntary green building certification programs and high-performance standards have been instrumental in pushing the envelope for thermal bridge mitigation, often setting higher benchmarks than minimum code requirements.

• Passivhaus Standard: The Passivhaus standard (Passive House) is arguably the most rigorous energy efficiency standard globally. It demands extremely low energy consumption for heating and cooling, which is virtually impossible to achieve without meticulously addressing thermal bridges. Passivhaus certification requires all Ψ-values for external junctions to be explicitly calculated and documented, with stringent limits on their magnitude (typically aiming for Ψ ≤ 0.01 W/(m·K) for most junctions, or even negative Ψ-values indicating an improvement over the planar U-value). The ‘thermal bridge-free construction’ principle is central to Passivhaus.
• LEED (Leadership in Energy and Environmental Design): LEED, a widely used green building rating system, rewards projects for superior energy performance. While not as prescriptive on Ψ-values as Passivhaus, achieving higher energy performance credits often necessitates comprehensive thermal bridge analysis and mitigation. LEED encourages whole-building energy modelling, where accurate thermal bridge inputs are crucial.
• BREEAM (Building Research Establishment Environmental Assessment Method): BREEAM, a UK-based but internationally recognized rating system, also incentivizes energy-efficient design. Similar to LEED, its energy credits often indirectly drive better thermal bridge performance through demanding overall U-values and stringent airtightness targets.
• Other Green Building Standards: Schemes like Green Star (Australia/South Africa), DGNB (Germany), and Living Building Challenge all, to varying degrees, emphasize building envelope performance, implicitly or explicitly demanding attention to thermal bridges to achieve their energy and comfort benchmarks.

Many thanks to our sponsor Focus 360 Energy who helped us prepare this research report.

7.3 Best Practice Guidelines

Achieving effective thermal bridge mitigation requires a concerted effort across the entire project lifecycle, guided by best practices:

• Integrated Design Approach: Thermal bridge mitigation should not be an afterthought but an integral part of the initial design process. Architects, structural engineers, mechanical engineers, and energy consultants must collaborate closely from the conceptual stage. This allows for early identification of potential thermal bridge hotspots and the development of integrated solutions.
• Detailed Junction Design: Generic details are insufficient. Each unique junction in a building (wall-floor, wall-roof, window-to-wall, balcony connection) requires careful, bespoke detailing to ensure insulation continuity and the proper integration of thermal breaks. This involves generating detailed construction drawings that explicitly show insulation layers and thermal break components.
• Use of Accredited Ψ-values: Whenever possible, use calculated (accredited or project-specific) Ψ-values rather than generic default values. This provides a more accurate energy assessment and often demonstrates better performance than assumed by defaults.
• Material Selection and Specification: Choose materials with appropriate thermal properties for their location and function. Specify high-performance insulation, structural thermal breaks, and window/door systems with excellent frame U-values and thermal break features. Ensure material compatibility and durability.
• Airtightness Strategy: Develop a comprehensive airtightness strategy in conjunction with thermal bridge mitigation. Air leakage often occurs at thermal bridge locations, exacerbating heat loss and moisture problems. Airtight membranes, tapes, and sealants should be specified and correctly installed.
• Quality Control and On-site Verification: Even the best design can be compromised by poor workmanship. Rigorous quality control during construction is essential. This includes:
  • Toolbox Talks: Educating tradespeople on the importance of thermal bridge details.
  • Photographic Documentation: Recording the installation of critical thermal breaks and insulation layers.
  • Infrared Thermography: Performing IR surveys after construction to verify the effectiveness of mitigation measures and identify any unforeseen issues.
• Education and Training: Continuous professional development for all stakeholders in the AEC industry is crucial to raise awareness and competence in thermal bridge identification, quantification, and mitigation techniques.

By embracing these regulatory requirements and best practices, the construction industry can systematically address thermal bridges, leading to buildings that are not only compliant but also genuinely high-performing, sustainable, and beneficial for their occupants and the environment.

8. Conclusion

Thermal bridges, once the ‘hidden enemy’ in building physics, are now recognized as a critical determinant of a building’s overall energy performance, indoor environmental quality, and long-term durability. This comprehensive exploration has underscored their pervasive impact, from driving up energy consumption and HVAC system loads to compromising occupant comfort and fostering environments conducive to mold growth and associated health risks.

The journey from an era of neglect to one of proactive integration has been driven by several factors: the escalating imperative for energy efficiency and decarbonization, the maturation of diagnostic technologies like infrared thermography, and the increasing sophistication of computational modelling tools such as Finite Element Analysis. These advancements have transformed thermal bridges from an unquantifiable design ‘fudge factor’ into a precisely measurable and manageable parameter, allowing for their accurate identification and the derivation of specific linear (Ψ-value) and point (χ-value) thermal transmittances.

Effective mitigation strategies, as detailed in this report, hinge upon fundamental principles such as achieving absolute continuity of insulation, simplifying complex junctions, and meticulously detailing every penetration and interface within the building envelope. This involves a spectrum of engineering solutions, from ubiquitous continuous external insulation systems and advanced framing techniques to highly specialized structural thermal breaks utilizing innovative materials like aerogels and Vacuum Insulated Panels (VIPs). Each solution, when correctly applied, serves to interrupt the direct pathways of heat flow, thereby fortifying the thermal integrity of the building.

The long-term dividends of this rigorous approach are substantial and multifaceted. Buildings designed with effective thermal bridge mitigation demonstrate significantly reduced peak heating and cooling loads, leading to the specification of smaller, more efficient HVAC systems, lower capital expenditures, and considerably reduced operational energy consumption. This not only translates into tangible economic savings over the building’s lifespan but also contributes meaningfully to the reduction of carbon emissions and the achievement of ambitious sustainability targets. Beyond the economic and environmental realms, the profound improvements in occupant health and comfort—through the elimination of cold spots, mitigation of radiant asymmetry, and drastic reduction of condensation-related mold risks—underscore the human-centric value of addressing thermal bridges.

Furthermore, the impact of thermal bridges is not uniform across all geographies. Climate-specific considerations are paramount, dictating tailored mitigation priorities and strategies, whether it be combating extreme heat loss in arctic zones, managing intense heat gain in arid regions, or navigating the intricate interplay of heat and humidity in tropical environments. This contextual sensitivity is increasingly reflected in evolving national building codes and international green building standards, which now demand a much higher level of scrutiny and quantification of thermal bridging effects.

In conclusion, the era of neglecting thermal bridges is definitively over. For building professionals, the meticulous attention to thermal bridge design and construction is no longer an optional ‘nice-to-have’ but an essential ‘must-have’ for delivering truly high-performance, resilient, and healthy buildings. As the industry moves towards ever more stringent energy targets and holistic sustainability, the proactive and intelligent management of thermal bridges will remain a cornerstone of exemplary architectural and engineering practice, paving the way for a more energy-efficient and comfortable built environment for generations to come.

9. References

• Asdrubali, F., Baldinelli, G., Bianchi, F., Costarelli, D., Rotili, A., Seracini, M., & Vinti, G. (2017). Detection of thermal bridges from thermographic images for the analysis of buildings energy performance. Energy and Buildings, 149, 1-10. https://arxiv.org/abs/1708.01463
• ASHRAE Standard 55-2020. (2020). Thermal Environmental Conditions for Human Occupancy. American Society of Heating, Refrigerating and Air-Conditioning Engineers.
• Chandrasiri, S., Lechowska, A. A., & Harte, A. M. (2017). Methods for improving the thermal performance of thermal bridges of lightweight steel-framed buildings. Buildings, 7(4), 95. https://pmc.ncbi.nlm.nih.gov/articles/PMC11651610/
• EN ISO 10211:2017. (2017). Thermal bridges in building construction — Heat flows and surface temperatures — Detailed calculations. International Organization for Standardization.
• EN ISO 13789:2017. (2017). Thermal performance of buildings — Calculation of annual heat loss by transmission and ventilation. International Organization for Standardization.
• Fokaides, P. A., & Kalogirou, S. A. (2011). IR thermography technique as an in-situ method of assessing heat loss through thermal bridging. Energy and Buildings, 43(3), 503-513.
• Pérez-Carramiñana, J. M., Romero, M. J., & Vicente, P. G. (2024). Assessment of thermal bridges in balconies and their impact on buildings in dry Mediterranean and semi-arid climates. Buildings, 14(1), 1-15.
• Smusz, M., & Korzeniowski, M. (2018). Controlling thermal bridging as a value-added technique to enhance energy efficient building envelopes. Energy Reports, 4, 1-7.
• Zhang, X., Jung, G. J., & Rhee, K. N. (2022). Performance evaluation of thermal bridge reduction method for balcony in apartment buildings. Buildings, 12(1), 63.
